CCTV System Installation

CCTV System Installation

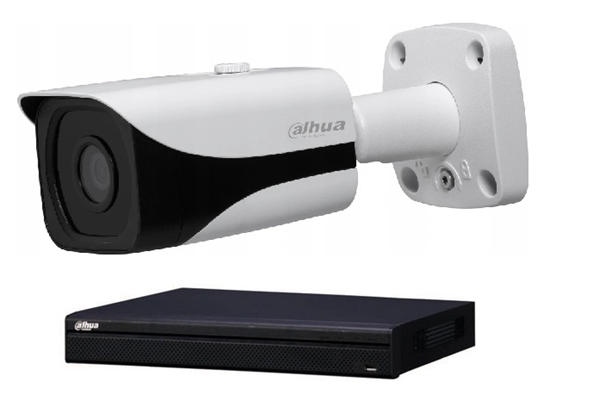

We offer delivery, installation and maintaining CCTV equipment onboard vessels. Depending on configuration is possible to choose from 4 to 16 cameras recorder equipped usually with 4TB internal hard disc and IP cameras. Cameras are watertightand recording video in resolution 2688 x 1520 (4Mpx).

Our cameras working in PoE system therefore we don’t need put 2 or 3 additional cables. Supply and signal are in one cable, what minimize potential damages. For connection was used special ethernet cable, resistant for heavy atmospheric condition and with DNV approval.

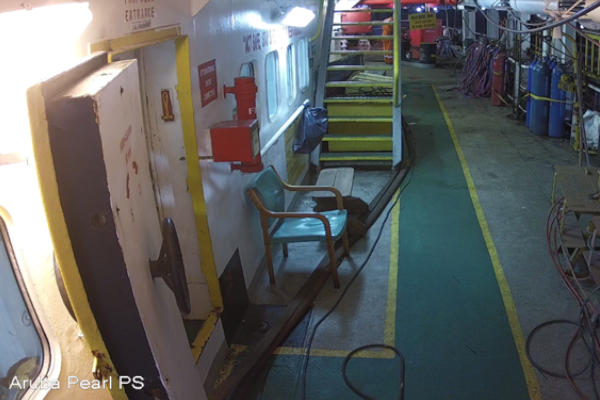

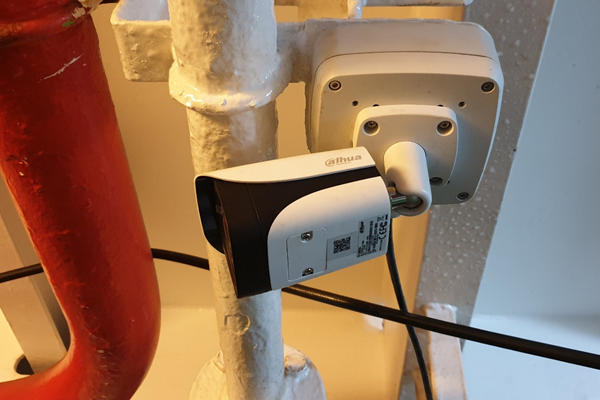

Cameras are usually mounted on thedeck under the roof where we have good view for gangway, ISPS point and entrance to accommodation. 4 Mpx resolution give us good quality image.

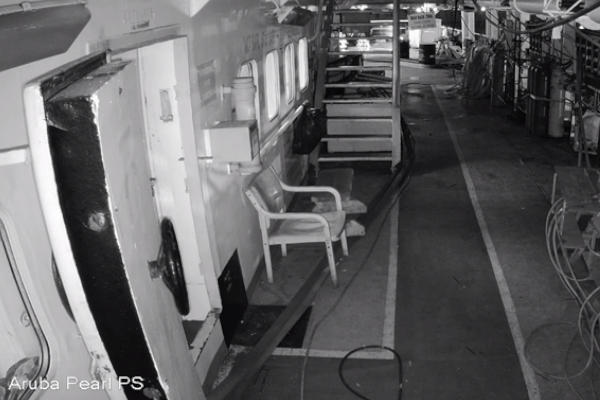

Cameras working also during night,automatically changing mode for B/W.

Recorder and monitor might beinstalled in C/O Office. Nobody from visitors or shore persons don’t have directly access to recorder. Recorder is passworded, therefore If somebody invades to C/O office, don’t have a chance to delete or steal records. Inside was installed 4 TB HDD who in this configuration (2 CAM) can keep data for approx. 45 days.

  • 1 Cam = 90 days
  • 2 Cam = 45 days
  • 3 Cam = 22 days
  • 4 Cam = 11 days
For example, if we have 2 Cameras for ISPS and 2 for maneuvering station, we can record only 2 ISPS Cams and keeping data from 45 days or recording 4 Cams, but this maneuvering station recording with smaller resolution. Summarizing for sure we can keep data from 21 -30 days.
Recorder is equipped with access to network and can be connected to VSAT.
Available are other configuration of this system:

  • Higher CAM resolution,
  • Hybrid Recorder where we have Analog and IP cameras together,
  • Extended disc capacity.
